Fischer Messtechnik / EA-15 measured value display

Industrial Design / UX/UI Design

Concept Development, Ideation, Detailing, Design Engineering, UX Mock-Up

Project

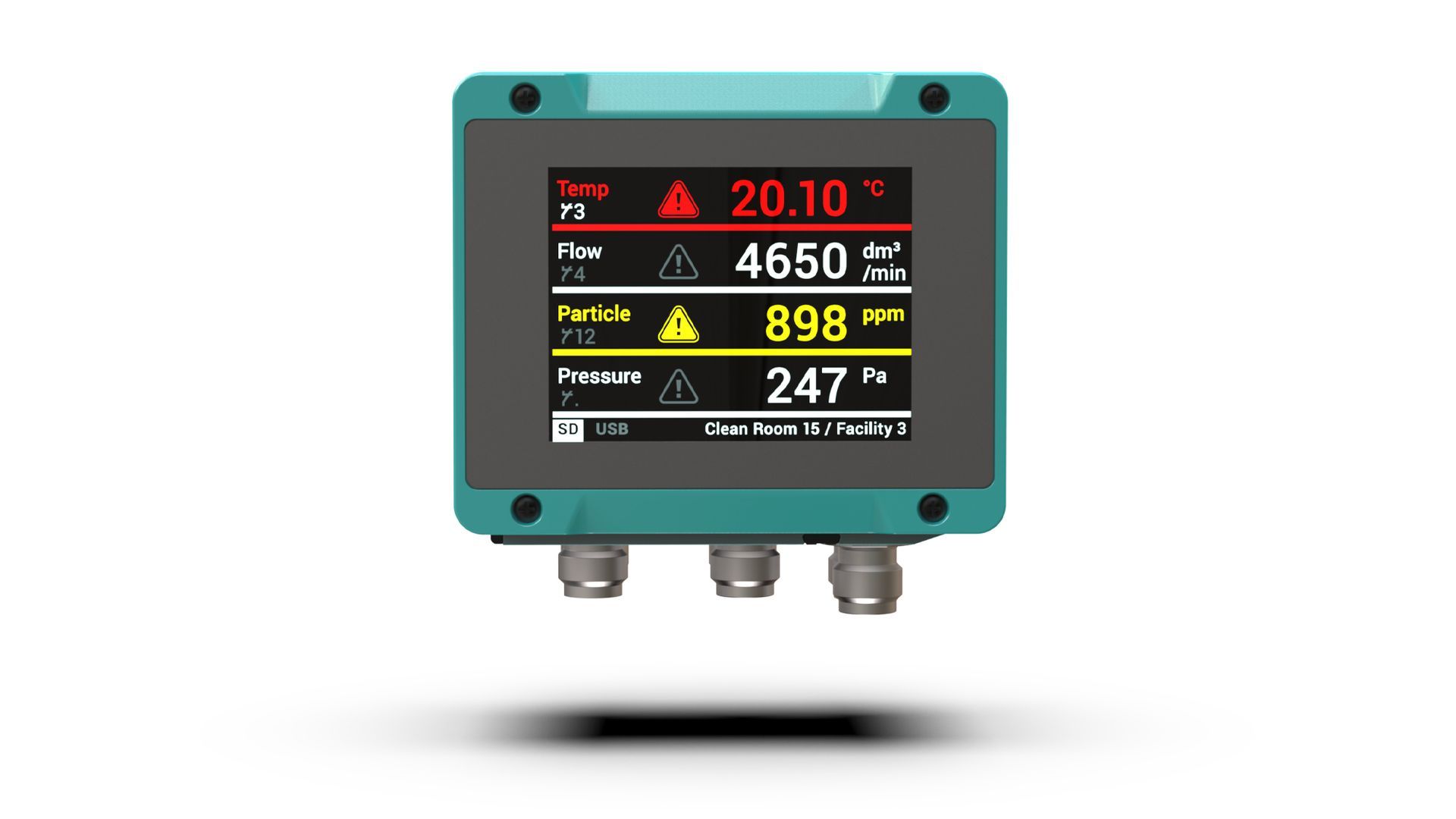

The EA15 is a measured value display unit for measuring transducers with current or voltage output signals according to IEC 60381. Up to four measuring transducers can be connected in two- or three-wire circuits.

Despite the small size, a high level of usability is guaranteed for the interface and the hardware interface. The development of the intuitive operating concept of the display with high contrast values allows good readability even from a greater distance. Different users are efficiently informed through language-neutral symbols and the logical color concept.

In the hardware area, an integrative sealing lip with hinge function was implemented in the smallest possible space, ensuring IP64 compatibility.

An integrative sealing concept and intuitive operating concept are cornerstones on which the high usability of the design concept is based.
